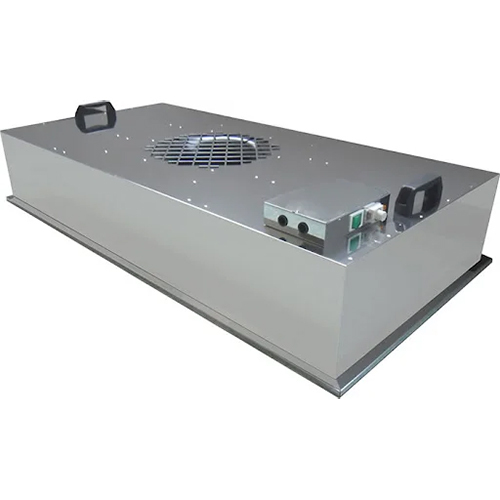

GF24AC FFU 1175*575*350 mm
11490.0 INR/Number
Product Details:
- Size Various Sizes Available
- Usage Industrial
- Condition New
- Material Stainless Steel / FRP
- Filtration Grade Pre Filter
- Warranty 1 Year
- Feature High Quality
- Click to View more
X
GF24AC FFU 1175*575*350 mm Price And Quantity
- 11490.0 INR/Number
- 1 Number
GF24AC FFU 1175*575*350 mm Product Specifications
- New
- Various Sizes Available
- Pre Filter
- High Quality
- Stainless Steel / FRP
- Industrial
- 1 Year
GF24AC FFU 1175*575*350 mm Trade Information
- Cash in Advance (CID)
- 100 Number Per Month
- 7 - 10 Days
- Yes
- If order is confirmed we will reimburse the sample cost
- All India
Product Description
FFU - Fan Filter Unit
GF24AC-Technical Data Sheet
|
SN |
Items |
Specifications |
|
|
1 |
Dimensions (mm) |
1175*575*180 |
|
|
2 |
Weight (kg) |
16 |
|
|
3 |
Noise (dB) |
60 |
|
|
4 |
(1)Total Static Pressure (Pa) |
190 |
|
|
5 |
Material |
Casing |
Galvanized Aluminum |
|
6 |
Impeller |
Steel-Aluminum Alloy |
|
|
7 |
(2)Operating Air Speed with filter(m/s ) |
0.45 |
|
|
8 |
Maximum Air Volume without filter (CMH) |
1300 |
|
|
9 |
Working Air Volume with filter (CMH) |
Low |
850 |
|
10 |
Medium |
950 |
|
|
11 |
High |
1050 |
|
|
12 |
Motor |
Power (W) |
190 |
|
13 |
Max RPM |
1050 |
|
|
14 |
Type |
AC Induction Motor |
|
|
15 |
Efficiency Class |
IE2 |
|
|
16 |
(3)Control Mode |
Single Control |
|
|
17 |
(4)Start Mode |
Direct Switch Start |
|
|
18 |
Safe Operating Voltage |
200V-240V |
|
|
19 |
Safe Operating Temperature (C) |
<55 |
|
|
20 |
(5)Average Daily Power Consumption (kWh) |
3.84 |
|
Explanation
(1) Total Static Pressure: Indicates the total pressure that the FFU can provide under working conditions, including system resistance.
(2) Operating Air Speed with filter: The airflow speed of the FFU after the filter is installed.
(3) Control Modes:
Single Control: Each FFU operates independently, suitable for small-scale systems.
*Group Control: Multiple FFUs operate in unison, suitable for large-scale cleanrooms, improving management efficiency.
(4) Startup Modes:
Direct Switch Start: Manually turn on/off, each FFU operates independently.
*Software Automatic Control Start: After connecting the FFU to the control panel, the control panel can be used to set automatic start/stop parameters.
*Control Panel Start: After connecting the FFU to the control panel, it can be manually started via the control panel.
*Mentioning Group Control / Control Panel / Automatic / Remote start means that this product supports BA/FCMS automatic control and requires an additional control system purchase.
