Air Shower Or Spray Blowing Shower

Air Shower Or Spray Blowing Shower
Air Shower Or Spray Blowing Shower

Air Shower Or Spray Blowing Shower Specification

  • Feature
  • High Quality
  • Air Flow
  • 1500-2200 m3/h
  • Material
  • Stainless steel
  • Thickness
  • 1.0-1.2 mm (Typical Stainless Steel or Powder-Coated Steel)
  • Door
  • Swing Door, Electromagnetic Interlock
  • Lighting
  • LED Light, 10-20 W
  • Application
  • Clean Room
  • Filter Type
  • HEPA Filter
  • Power Consumption
  • 700-1800 W
  • Weight
  • Ranging from 200-350 kg
  • Nozzle
  • Stainless Steel Adjustable Nozzle, 12-32 pcs
  • Air Volume
  • 1000-2200 m3/h
  • Filters
  • Pre-filter and HEPA filter
  • Frame Material
  • Stainless Steel 304/316 or Powder Coated GI Sheet
  • Type
  • Automatic Air Shower
  • Condition
  • New
  • Voltage
  • 220-240 V / 50-60 Hz
  • Dimension (L*W*H)
  • Customized or Standard Size (e.g., 1200x1000x2100 mm)
  • Floor
  • Stainless Steel with Antiskid Mat
  • User Interface
  • Touch Panel or Push Button
  • Operation Mode
  • Manual/Automatic
  • Noise Level
  • <70 dB
  • Air Velocity
  • 22-28 m/s at Nozzle
  • Compliance
  • Meets ISO 14644 & cGMP Standards
  • Control System
  • Microprocessor Based Control
  • Display
  • Digital Cycle Time Display
  • Cycle Time
  • 0-99 seconds (Adjustable)
  • Safety
  • Emergency Stop Button and Safety Sensor
  • Number of Persons
  • Single/Double/Multiple
  • Blower
  • Centrifugal Type


Air Shower Or Spray Blowing Shower Trade Information

  • Minimum Order Quantity
  • 10 Units
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 7 - 10 Days
  • Main Domestic Market
  • All India


Air Shower Or Spray Blowing Shower About

Here is a description of an Air Shower or Spray Blowing Shower without using special characters:

An air shower or spray blowing shower is a self-contained system designed to remove dust and particles from personnel or equipment before entering a cleanroom or controlled environment. It uses high velocity air jets or sprays to blow off contaminants from surfaces. The air is then filtered and recirculated through HEPA filters to maintain cleanliness. This system helps prevent the transfer of unwanted particles and ensures a higher level of hygiene and safety in sensitive areas such as laboratories, manufacturing units, and research facilities.



Advanced Control and Safety Mechanisms

Equipped with microprocessor-based controls and user-friendly interfaces such as touch panels or push buttons, the air shower provides precise management over cycle times and operational modes. Comprehensive safety features, including an emergency stop button, safety sensors, and electromagnetic interlocks on swing doors, ensure safe operation even in intensive environments.


Superior Filtration and Airflow Performance

The air shower integrates powerful centrifugal blowers and adjustable stainless steel nozzles to deliver air velocities between 22-28 m/s, efficiently removing particles. HEPA and pre-filters guarantee air purity while the adjustable air volume and customized dimensions accommodate diverse clean room requirements.


Versatility and Compliance

Designed to meet ISO 14644 and cGMP compliance, this air shower is suitable for single, double, or multiple users. Available in both standard and custom dimensions and constructed using robust stainless steel, it seamlessly fits varied cleanroom protocols in pharmaceutical, biotech, and high-tech manufacturing sectors.

FAQ's of Air Shower Or Spray Blowing Shower:


Q: How does the air shower remove contaminants from personnel entering the clean room?

A: The system uses high-velocity air jets (22-28 m/s) emitted through adjustable stainless steel nozzles to dislodge and remove particulates from clothing and surfaces. Contaminated air is then captured by pre-filters and HEPA filters, ensuring only clean air circulates within the chamber.

Q: What options are available for operating and controlling the air shower?

A: Operators can choose between a touch panel or push button interface to manage the air shower. Cycle time can be set anywhere from 0 to 99 seconds and operation modes available are manual or automatic. A microprocessor-based control system and a digital display allow precise and user-friendly adjustments.

Q: When should an air shower be used in a clean room environment?

A: Air showers are best used before personnel or materials enter critical cleanroom areas to prevent the introduction of contaminants that may affect sensitive operations, such as in pharmaceutical production, bio-technology labs, or electronics manufacturing.

Q: Where can the air shower be installed and are the dimensions flexible?

A: These units can be installed at entry points of clean rooms or controlled environments. Both standard (e.g., 1200x1000x2100 mm) and customized dimensions are available to ensure compatibility with different facility layouts and user capacities.

Q: What safety mechanisms are incorporated into the air shower design?

A: Safety is assured through emergency stop buttons, safety sensors, and electromagnetic door interlocks that prevent operation if any risk or error is detected. The anti-skid stainless-steel flooring further enhances safety during use.

Q: How is maintenance managed and what is the expected benefit of using this air shower?

A: Routine maintenance involves replacing pre-filters and HEPA filters as needed, which is simplified by the system's accessible design. The primary benefit is consistent control of airborne contamination, helping to maintain clean room integrity and compliance with ISO 14644 and cGMP standards.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Clean Room Equipment Category

Lab Pass Box

Lab Pass Box

Price 30000 INR / Unit

Minimum Order Quantity : 10 Units

Weight : 25 45 kg (varies as per size & model)

Frame Material : Stainless Steel

Condition : Other, New

Type : Other , Static/ Dynamic

Statics And Dynamic Pass Box

Statics And Dynamic Pass Box

Price 176999 INR / Piece

Minimum Order Quantity : 10 Units

Weight : 65 kg 90 kg

Frame Material : Stainless Steel

Condition : Other, New

Type : Other , Static & Dynamic Pass Box

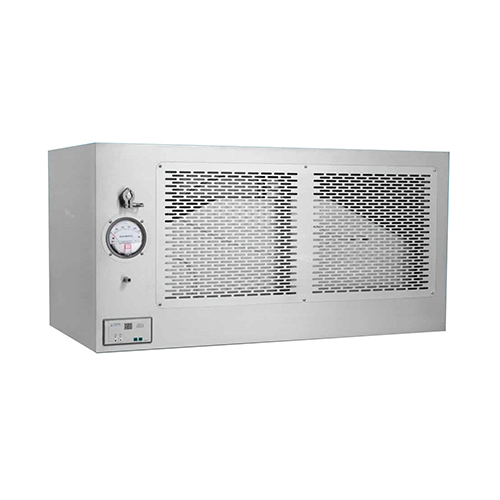

Laminar Airflow System
