Lab Pass Box Specification

  • Filters
  • HEPA Filter (99.97% at 0.3 micron), Pre-filter (Washable synthetic)
  • Floor
  • Stainless Steel, smooth and easy to clean
  • Feature
  • High Quality
  • Door
  • Double-walled, electromagnetic interlocking, glass observation window
  • Dimension (L*W*H)
  • Custom sizes available; Common size: 600x600x600 mm
  • Voltage
  • 220-240 V AC, 50 Hz
  • Weight
  • 25 - 45 kg (varies as per size & model)
  • Air Volume
  • 350-800 CMH (cubic meter per hour)
  • Air Flow
  • Uni-directional (Horizontal/Vertical)
  • Application
  • Clean Room
  • Thickness
  • 1.2 mm - 1.6 mm (customized as per requirement)
  • Nozzle
  • Stainless Steel Nozzles (for dynamic pass boxes)
  • Condition
  • New
  • Lighting
  • Fluorescent/LED lighting inside chamber, UV lamp (optional)
  • Filter Type
  • HEPA Filter
  • Type
  • Static/ Dynamic
  • Power Consumption
  • 50-150 W (depending on model and configuration)
  • Frame Material
  • Stainless Steel
  • Material
  • Stainless steel
  • Noise Level
  • <65 dB
  • Control Panel
  • Microprocessor-based control panel with digital display
  • Finish
  • Matt/Glossy Finish
  • Leakage Test
  • 100% factory tested for leakage
  • Accessories
  • UV Germicidal Lamp, Hour meter, UV protection, Emergency buzzer
  • Installation
  • Wall/Floor mounted installation options
  • Interlocking Mechanism
  • Mechanical/Electromagnetic interlock to prevent simultaneous door opening
  • Operation
  • User-friendly operation with push button controls and indicator lights


Lab Pass Box Trade Information

  • Minimum Order Quantity
  • 10 Units
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 7 - 10 Days
  • Main Domestic Market
  • All India

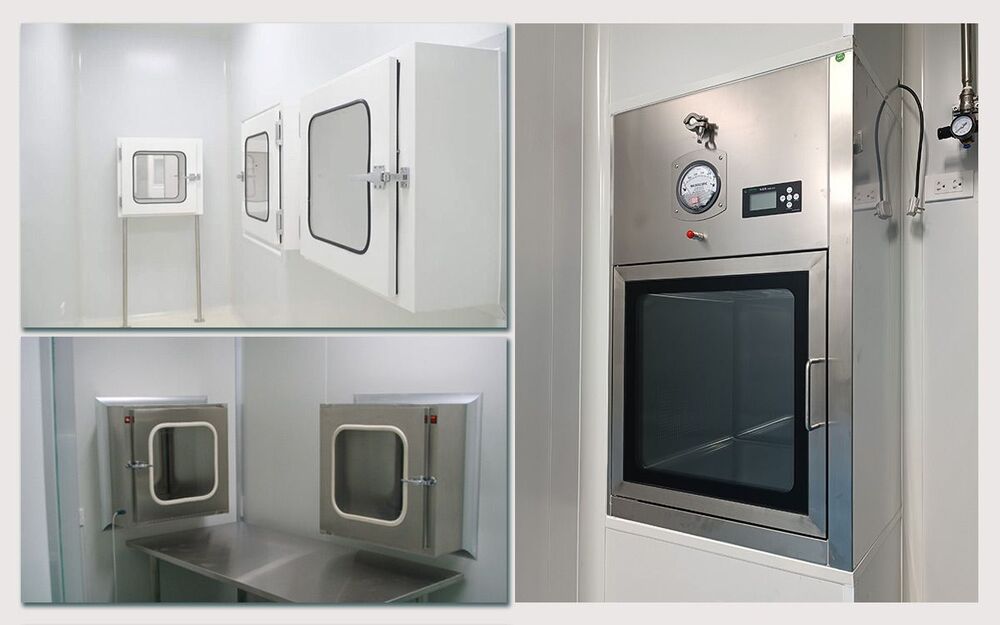

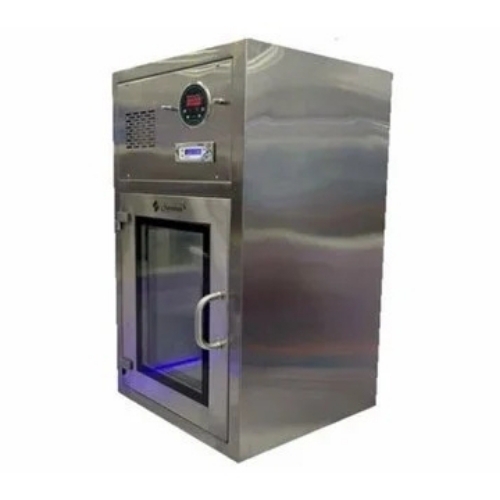

Lab Pass Box About



Procure the finest Lab Pass Box, crafted with imposing stainless steel and lustrous finishes for impeccable cleanroom standards. Featuring a state-of-the-art mechanical or electromagnetic interlocking mechanism, this pass box prevents simultaneous door openings, enhancing safety. The microprocessor-based control panel boasts digital displays and user-friendly push-button controls. Reserve your hygienic transfer space-tested rigorously for leakage and fitted with HEPA filtration, UV protection, and emergency buzzers. Flexible wall or floor mounting, and customizable sizes ensure this premium equipment adapts distinctively to your requirements. Promotion of sterile workflows is guaranteed by advanced filtration and precise airflow management.

Optimized Usage and Application Areas

This Lab Pass Box is best suited for clean room environments in pharmaceutical, research, and biotechnology facilities. Direction of use is straightforward: Items are placed inside, the outer door is sealed, then the inner door's interlock releases for safe transfer. Its use type includes both static and dynamic models, providing versatility for various controlled environments where contamination control and safe sample transfer are paramount.


FOB Port, Certifications, and Sample Policy

Premium Lab Pass Boxes will be handed over at major Indian FOB ports. Units are supplied with recognized certifications, affirming their quality and compliance for cleanroom operations. Clients may request product samples for a nominal charge, supporting confident decision-making before bulk procurement. Each unit offers robust manufacturing standards, ensuring premium results and reliable long-term usage with each delivery.


FAQ's of Lab Pass Box:


Q: How does the interlocking mechanism ensure operational safety?

A: The mechanical or electromagnetic interlock prevents both doors from being opened simultaneously, effectively minimizing the risk of cross-contamination between different zones in your cleanroom facility.

Q: What applications are best suited for this lab pass box?

A: This pass box excels in cleanrooms within pharmaceuticals, biotechnology, research labs, and other controlled environments where the secure and sterile transfer of items between areas is critical.

Q: When should the UV germicidal lamp be used?

A: The UV germicidal lamp is best used during item transfer or between transfers to disinfect the internal chamber, thereby reducing microbial contamination risks.

Q: Where can the pass box be installed?

A: The unit is versatile, offering both wall or floor mounted installation options. Its customizable size allows it to fit precisely within your desired cleanroom layout.

Q: What is the benefit of the HEPA and pre-filter system?

A: The integrated HEPA and washable pre-filters ensure that transferred items remain free from airborne contaminants, maintaining cleanroom integrity and product safety.

Q: How user-friendly are the controls and display?

A: With a microprocessor-based digital control panel, push button operation, and clear indicator lights, users enjoy straightforward and intuitive operation for all transfer procedures.
