Laminar Airflow System

Laminar Airflow System
Laminar Airflow System

Laminar Airflow System Specification

  • Weight
  • 50-65 kg (varies with size)
  • Floor
  • Stainless steel or perforated work bench
  • Power Consumption
  • 200-400 W (depending on size and fan motor)
  • Thickness
  • 1.2 mm (typical for stainless steel or GI construction)
  • Air Flow
  • Unidirectional (Horizontal/Vertical) at 0.45 0.05 m/s
  • Filters
  • Pre-filter and HEPA filter stages
  • Frame Material
  • Stainless steel / GI (as per model)
  • Filter Type
  • HEPA Filter
  • Lighting
  • Fluorescent lamp (800-1200 Lux), UV lamp (optional)
  • Feature
  • High Quality
  • Voltage
  • 220V/230V AC, 50 Hz
  • Application
  • Clean Room
  • Condition
  • New
  • Door
  • Acrylic/Polycarbonate sliding/foldable
  • Material
  • Aluminum
  • Dimension (L*W*H)
  • Available in standard/customized sizes, e.g., 1200*600*600 mm
  • Type
  • Horizontal/Vertical Laminar Airflow Cabinet
  • Air Volume
  • Approx. 600-1200 m3/h (model dependent)
  • Nozzle
  • NA / Optional gas/electricity nozzle
  • Castors/Legs
  • Adjustable leveling feet or castor wheels
  • Working Area
  • Smooth, corrosion-resistant premium finish
  • Control Panel
  • Soft touch membrane switch (On/Off, lighting)
  • Window
  • Toughened glass/Polycarbonate front sash
  • UV Timer
  • Optional digital timer for UV light safety
  • Residual Air Outlet
  • Provided at rear/top for exhaust
  • Pressure Gauge
  • Minihelic/Magnehelic type for filter monitoring
  • Electrical Outlet
  • Provision for 5/15A utility socket
  • Fan Type
  • Dynamically balanced, low-noise motor blower
  • Sound Level
  • Less than 65 dB


Laminar Airflow System Trade Information

  • Minimum Order Quantity
  • 10 Pieces
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 100 Pieces Per Month
  • Delivery Time
  • 7 - 10 Days
  • Main Domestic Market
  • All India


Laminar Airflow System About

A laminar airflow system is a clean air equipment that provides a continuous flow of filtered air in a single direction to maintain a contamination-free environment. It works by drawing air through a pre filter and passing it through a HEPA filter to remove dust and microorganisms. The filtered air flows in a smooth uniform stream over the work area, preventing the entry of airborne particles. This system is commonly used in laboratories, pharmaceutical manufacturing, hospitals, and electronics industries where a high level of cleanliness is required. Laminar airflow systems can be horizontal or vertical depending on the direction of airflow.

Precision Air Quality for Critical Applications

This Laminar Airflow System delivers highly filtered, unidirectional airflow, safeguarding sensitive processes in laboratories, pharmaceutical, and electronic manufacturing clean rooms. With HEPA and pre-filter stages, it achieves exceptional air cleanliness, efficiently removing particulates and contaminants. The airflow cabinet's design includes advanced construction features like 1.2 mm thick stainless steel or GI, ensuring longevity and durability in demanding environments.


User-Friendly Controls and Enhanced Safety

Operate your clean bench effortlessly using a soft touch membrane control panel for on/off functionality and lighting. The system supports safe operation with a toughened glass or polycarbonate sash, and offers an optional digital UV timer to ensure UV light is used securely. Its electrical utility socket, adjustable feet or wheels, and quiet, dynamically balanced blower provide practical benefits for everyday use.


Customizable and Versatile Design

Available in horizontal or vertical airflow configurations, the cabinet adapts to diverse workspace requirements. Standard dimensions are 1200*600*600 mm, but custom sizes ensure a perfect fit for your clean room. Optional features-like gas/electric nozzles, sliding or foldable doors, and stainless steel perforated benches-enhance adaptability, making this system suitable across multiple sectors in India.

FAQ's of Laminar Airflow System:


Q: How does the pressure gauge help in monitoring the filter performance in the Laminar Airflow System?

A: The included Magnehelic or Minihelic pressure gauge measures the differential pressure across HEPA and pre-filters, enabling users to detect filter clogging early and schedule timely maintenance, ensuring consistent air quality.

Q: What are the key benefits of using this Laminar Airflow System in a clean room?

A: This system provides clean, unidirectional airflow that effectively removes contaminants, protects sensitive work, and maintains a noise level below 65 dB. Features like corrosion-resistant surfaces, UV safety options, and customizable sizes maximize operational efficiency, safety, and user comfort.

Q: When should the filters in the Laminar Airflow Cabinet be replaced?

A: Filters should be replaced when the pressure gauge indicates a significant increase in differential pressure, signifying reduced airflow due to clogging. Regular monitoring ensures optimal performance and protection for critical operations.

Q: Where can this Laminar Airflow System be installed?

A: It is suitable for installation in regulated environments like laboratories, pharmaceutical production units, electronic assembly clean rooms, and any area requiring particle-free air. Its adjustable legs or castors offer flexibility for different setups.

Q: What is the process for cleaning and maintaining the workspace area?

A: The cabinet's premium corrosion-resistant surface and toughened glass/polycarbonate sash allow for easy wipe-down with standard disinfectants. Routine cleaning and periodic inspection of filters ensure sustained hygiene and performance.

Q: How is airflow direction configured in this system?

A: Customers can choose between horizontal or vertical laminar airflow models, depending on application needs. Both types deliver a uniform flow at 0.45 0.05 m/s, ensuring optimal protection for samples and personnel.

Q: What utility provisions are included in the Laminar Airflow System?

A: The cabinet comes with a 5/15A electrical utility socket for convenient device connection. Optional gas/electricity nozzles can be requested to support additional equipment requirements.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Clean Room Equipment Category

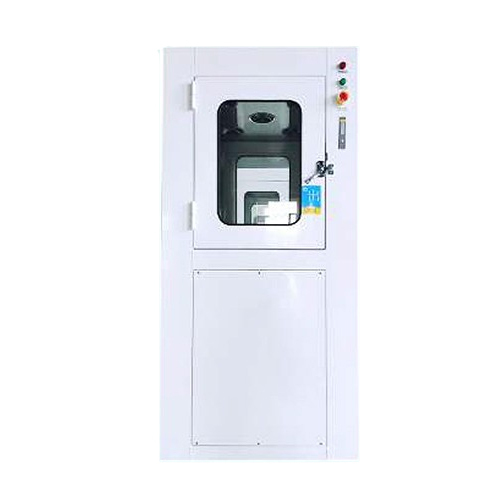

Statics And Dynamic Pass Box

Statics And Dynamic Pass Box

Price 176999 INR / Piece

Minimum Order Quantity : 10 Units

Air Flow : Unidirectional / Laminar flow (Dynamic Type)

Lighting : LED UV/Fluorescent Lamp

Frame Material : Stainless Steel

Filter Type : HEPA Filter

Laminar Airflow Trolley

Laminar Airflow Trolley

Price 280000 INR / Piece

Minimum Order Quantity : 10 Units

Air Flow : 0.3 0.5 m/s

Lighting : Fluorescent/LED UV Germicidal Lamp

Frame Material : Stainless Steel

Filter Type : HEPA Filter

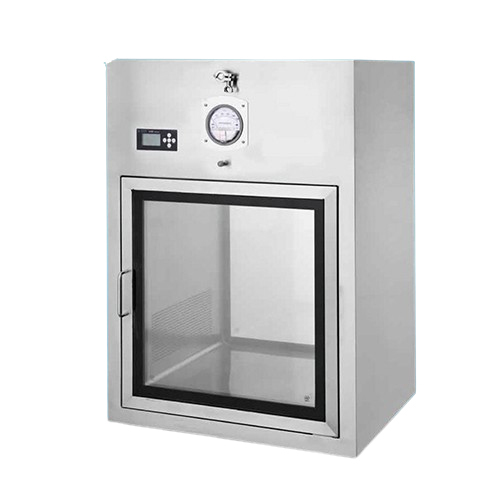

Lab Pass Box
